Comminuting Mill GMP Model

Comminuting Mill GMP Model

The latest improvements in design make this unit a truly cGMP model and versatile in Operation & Maintenance.

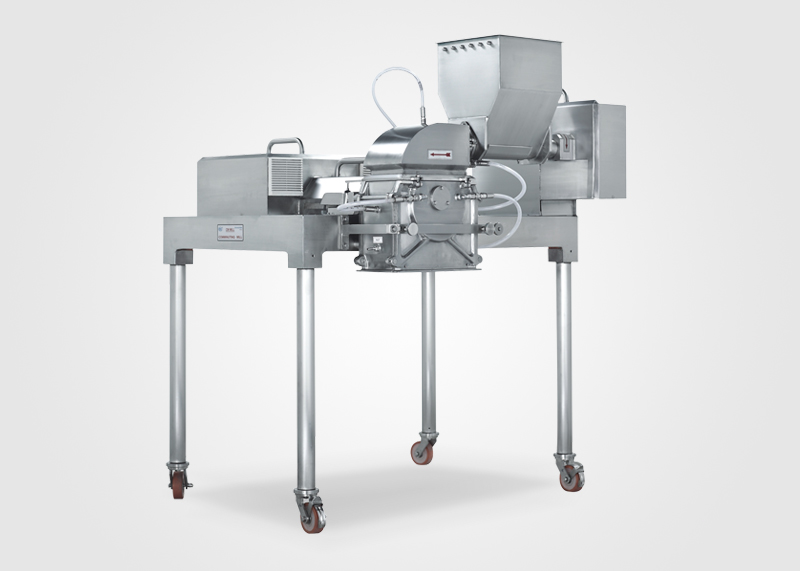

The unit consists of S.S.304 quality hopper, feed throat, and processing chamber (can be provided in S.S.316 quality at extra cost) with beaters assembly, heavy-duty motor, a starter with overload relay, three-speed step pulley, suitable screen, S.S. cladding base having tubular legs with castors, optional jacket for the feed throat and processing chamber for cooling/heating.

Request A Quote
Product Description

Chamunda Pharma Machinery Pvt. Ltd. has been manufacturing and supplying high quality communiting mill machine to the global pharma industries for over 40 years. Chamunda Pharma Machinery is a globally renowned company that has been in the healthcare industry for more than 40 years. We are an established name when it comes to providing drugs and medical equipment, with distribution channels spanning across America, Europe, Asia-Pacific region and Africa. With our customer centric approach, we have managed to reach out to millions of people worldwide.

Features
  • In compliance with cGMP guidelines
  • Side discharge instead of center discharge
  • Option of fixed beaters assembly and swing beaters assembly
  • Available in Plain & Water Jacketed model
  • Beltless drive as an optional feature (provided only with CPMFM-II / IV / V)
  • Feed screw to maintain a constant and uniform rate of feeding as an optional feature. (provided only with CPMFM-II / IV / V)
  • ACVFD for main and screw feeder motors as an optional feature. (provided only with CPMFM-II / IV / V)
  • Higher operator’s safety by interlocking belt guard, throat hopper, and chamber assemble with the main motor
  • PU Castor Wheel for mobility with brakes
  • FLP construction (optional)
Technical Specifications
MODELS CPMFM -1 CPMFM - II CPMFM - III CPMFM - IV CPMFM - V
Output (kg/hr)* 50 to 800 50 to 800 50 to 800 50 to 800 Up to 2000
No. of Beaters 16 16 16 16 32
Beater Speed (tpm) Fix speeds 1000 / 2250 / 4500 Variable from 1000 to 4500 Fix speeds 1000 / 2250 / 4500 Variable from 1000 to 4500 Variable from 1000 to 6000
Beater Motor 7.5 HP. 7.5 HP 7.5 HP 7.5 HP 15 HP
Feeding Manual Manual Feed Screw Feed Screw Twin Feed Screw
Feed Screw Motor Not Applicable Not Applicable 0.5 HP 0.5 HP 1 HP
Feed Screw RPM Not Applicable Not Applicable 10 to 16 10 to 16 10 to 16
Screen Width (mm) 152 (6") 152 (6") 152 (6") 152 (6") 305 (12")
Screen Area (sq.mm) 66825 66825 66825 66825 133650
Screen Dia (mm) 281 281 281 281 281
Electrical Supply* 7.5 HP, 3 ∅,A.C. 7.5 HP, 3 ∅,A.C. 8 HP, 3 ∅,A.C. 8 HP, 3 ∅,A.C. 16 HP, 3 ∅,A.C.
