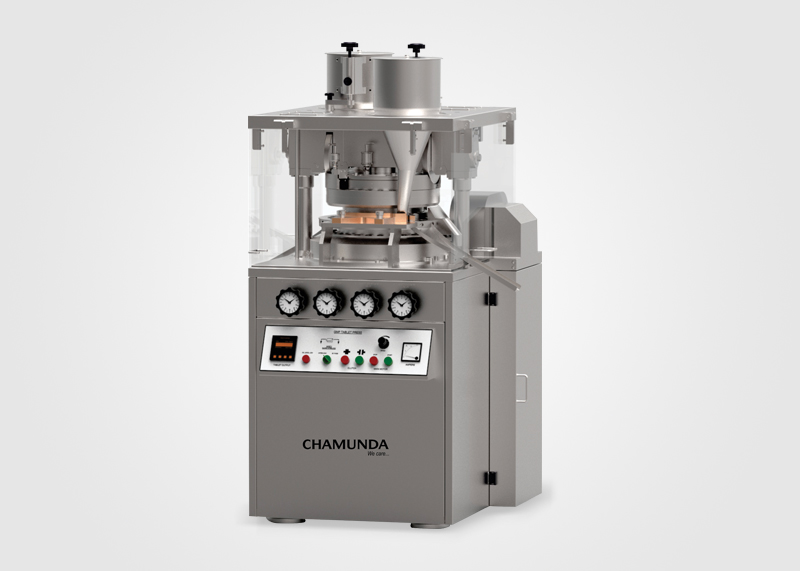

CPEB4 – Front Control

In the entry-level segment of Double Rotary Tablet Press, CPEB4-FC is a proven model with the advantage of Front Control Operations.

Request A Quote

Features

Contact Parts in SS 316
Front Control for Tablet Parameters.
Three Piece Turret with SS 316 Die Plate with Lower Punch Wiper Seal (Wiper seal only in D & B Tooling)
Two-Sided (Tunnel Type) Lifting Upper Track
Upper Punch Penetration.
Upper Guard interlocking.
Main Motor with ACVFD and Electro-Magnetic Clutch.
Manually Overload Pressure Release Arrangement.
Dust Nozzle with Clamp.
Lower Punch Lubrication for Punch Stem (Punch Body).
Auto Lubrication Arrangement for centralized lubrication.
Big Oil Cup 1 Nos. & Small Oil Cup- 2 Nos. for manual continuous lubrication
Anti-vibration mounts for vibration absorption.
Inching.
Anti-Reverse Protection.
Force Feeder with AC Drive**
Bi-Layer attachment**
Provision for extra plug and socket - 2 nos. of single-phase and 3 nos. of three-phase for De-Duster and Dust Extractor machine connection
Motor - 3 phase / 415V / 50 Hz / Non-Flame proof

Technical Specifications

MODELS	CPEB4-FC	CPEB4-FC	CPEB4-FC
MODELS	27 'D'	35 'B'	45 'BB'
No of Stations	27	35	45
Tooling	D	B	BB
Max. Pressure (Ton)	10	6.5**	6.5**
Turret Speed (RPM)	17 to 42	17 to 42	17 to 42
Max Tablet Dia. (mm)	25	16	11
Max Output (Tablets/hr)*	136,080	176,400	226,800
Depth of Fill (mm)	20	17	17
Main Motor	5 HP, 1440 RPM	5 HP, 1440 RPM	5 HP, 1440 RPM
Upper Punch Penetration (mm)	3 to 6	3 to 6	3 to 6
Power Supply	415V, 3Phase, 50Hz	415V, 3Phase, 50Hz	415V, 3Phase, 50Hz
