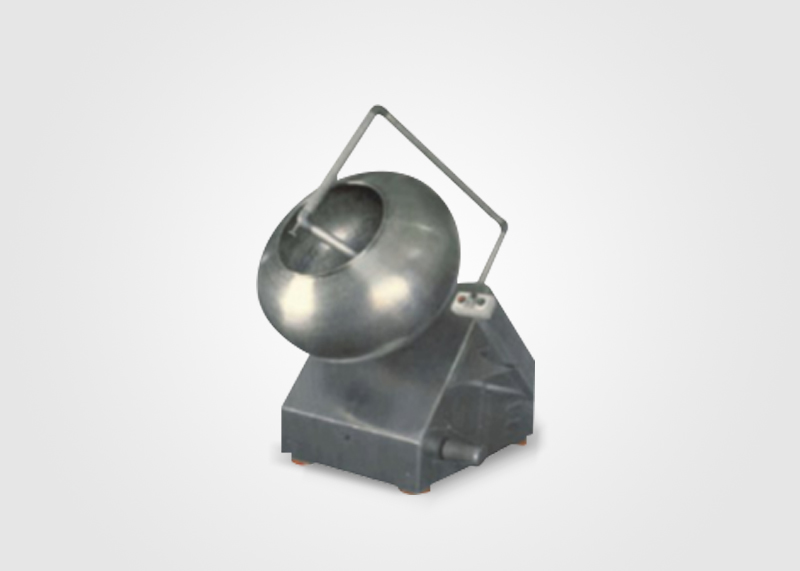

Conventional Coating Machine GMP Model

Clit Coating Machine is available with 30”, 36”, 42”, 48”, 60” or 72”, size SS Pan. The coating machine is totally enclosed with MS Cladding with standard Gear Box, Motor, Hot Air Blowing arrangement. The machine is designed with MS fabricated structure and all arrangements – except electric control, air filter and SS Pan are inside the enclosure, which makes simple cleanable outside covering. The machine is mounted on dynamounts which avoids foundation.

Request A Quote
Product Description

30”, 36”, 42” or 48” Coating Machine has variable speed drive and hot air blowing system is built in the machine.

60” or 72” Coating Machine has two speeds with step pulley without hot air blowing system. A suitable hot air blowing system can be supplied separately on demand.

All clit Coating Machines are provided with the interlocked electrical circuits so that heaters can be operated only after blowers are made ‘ON’ to avoid burning of hearts. Coating SS Pan Mouth ring is soldered at their rim cavities to avoid the collection of dirt or contaminated drug. Clit standards machine with Redicon Gear Box and NGEF or Siemens Motor and all electrical controls are of Siemens or L&T make. Thermostat control can be provided on demand. On customer demand, Gear Box and electrical including motors can be provided local make for economic purpose.

Chamunda Pharma Machinery Pvt. Ltd. is a research and manufacturing company that develops, manufactures and markets innovative pharmaceutical products. Chamunda's commitment to quality has made it the world leader in coating machines for tablets and capsules. The company specializes in providing high-quality conventional coating machines which are used by pharmaceutical companies worldwide to produce their medicines.

Features
  • In compliance with cGMP guidelines
  • Sanitary design of the pan
  • Excellent tablet rolling welded baffle
  • Spraying system with peristaltic pump and solution tank (Optional)
  • Quick dismantle & adjustment of spray guns (Optional)
  • Effective coating of tablets
  • Adjustment angle of the pan
  • Interchangeable pans from higher to lower capacity
  • Exhaust blower with motor (Optional)
Technical Specifications
Model CPMCS 18" CPMCS 30" CPMCS 36" CPMCS 42" CPMCS 48" CPMCS 60" CPMCS 72"
Working Capacity (Ltr) 12 40 75 125 200 310 520
Pan RPM (Max.) 28 28 24 24 24 12 10
Inlet Blower (CFM) 200 400 400 500 550 1000 2000
Blower (CFM) Exhaust 400 500 500 700 800 1500 3500
Heater (KW) 3 6 6 9 9 12 21
Main Drive Motor(Hp) 1 2 2 3 3 5 7.5
Inlet Blower Motor (HP)** 0.75 1 1 1.5 1.5 3 5
Exhaust Blower Motor (HP)** 1 1 1 2 2 5 10
Compressed Air (bar) 6
Power Supply 415V + 10%, 3Phase, AC
