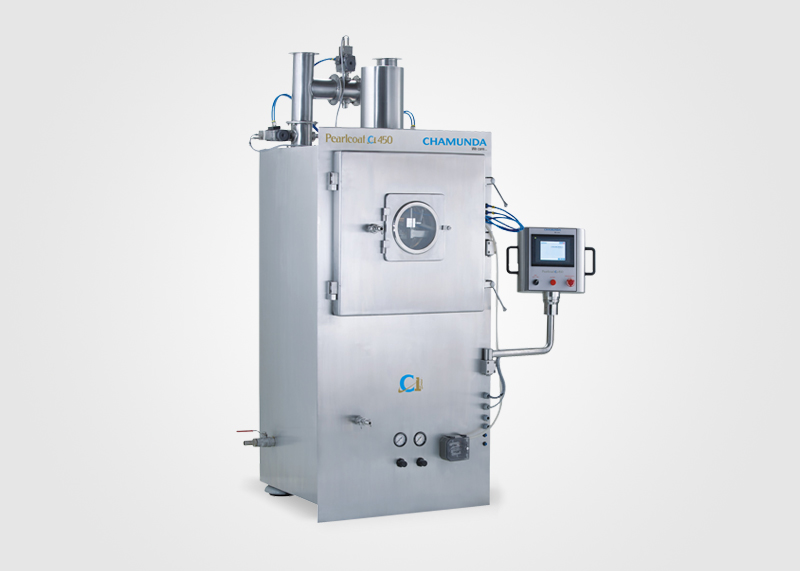

Pearl Coat Ci

Pearlcoat Ci auto coating systems are intelligently innovated for consistency, simplicity, and flexibility in the coating.

It is a system that operates for any kind of coating automatically by process integrated control system.

Request A Quote
Product Description

Ci – Auto coating system stands testimony to the fact that a precisely controlled process is best achieved with matched system components in keeping with the desired coating objectives.

A highly efficient pan design, solution spray system, and process control provide accurate batch consistency with high production efficiency.

The system also provides all the professional disciplines necessary to design, test, manufacturer, and install a tailor-made system to suit your need.

cGMP legislations are the minimum acceptable standards in manufacturing.

Features
  • In compliance with cGMP guidelines
  • Modular Design
  • Accurate batch consistency with high production efficiency & effective spraying with special design anti bearding type guns
  • Accurate temperature control within ± 2° C
  • In-built WIP system
  • Quick accessibility for maintenance & cleaning
  • Quick-release of Plenums for cleaning of Pan and Plenums.
  • Effective sealing of doors.
  • Fully Automatic Operation through Programmable Logic Controller
  • Sugar Coating System (optional)
  • Interchangeable Pans up to ci 900 model (optional)
  • Flameproof Construction (optional)
Technical Specifications
MODEL Ci 450 Ci 900 Ci 1200 Ci 1500 Ci 1650
Working Capacity - kg* 5-7 45-70 100-150 200-350 400-500
Pan Diameter - mm 450 915 1220 600 600
Pan mouth Diameter - mm 200 300 480 600 600
Pan Speed - RPM 2-18 2-15 2-15 2-15 2-15
Main Drive Motor HP 1 1.5 3 5 7.5
Inlet/Outlet Fan Air Volume (CFM ± 10 %) 590 900 1750 3500 5000
Electric Heater - kW 22 34 N.A. N.A. N.A.
Compressed Air Pressure (bar) 6
Electrical Supply** 415 V ± 10%, 30,AC
