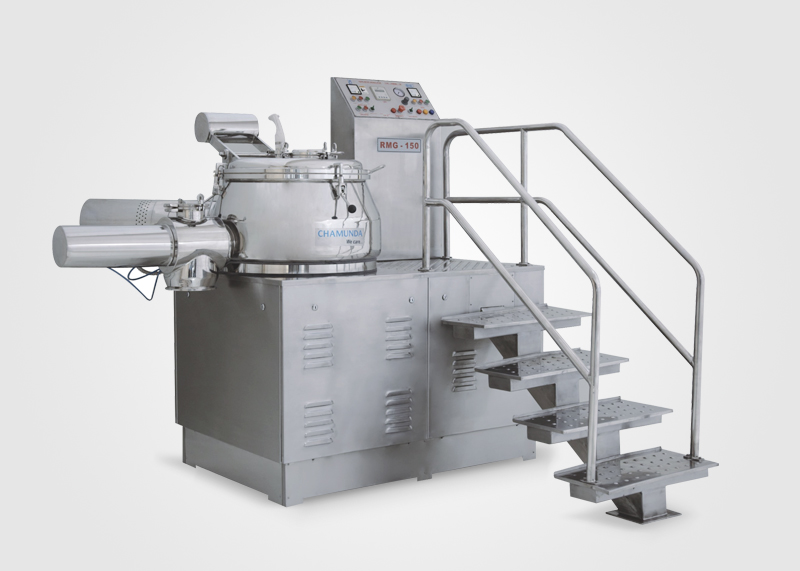

High Shear Mixer Granulators – RMG

Adding New Dimensions to the Granulation Technology. A Novel Solution in High Shear Mixer Granulators, Wet Mixing, and Rapid Granulation Technology.

“RMG Series” has been designed, manufactured, tested, and certified to achieve the optimal solutions for wet mixing and granulation. This is not just a claim; it is our commitment to customer satisfaction. The RMG Series is the answer for industry-wide concern regarding uniformity of the granules, consistent product quality and operation, cleaning & maintenance in lesser time, We have been successfully able to address and solve these and many other areas of concern.

Request A Quote
Product Description

Adding New Dimensions to the Granulation Technology. A Novel Solution in High Shear Mixer Granulators, Wet Mixing, and Rapid Granulation Technology.

“RMG Series” has been designed, manufactured, tested, and certified to achieve the optimal solutions for wet mixing and granulation. This is not just a claim; it is our commitment to customer satisfaction. The RMG Series is the answer for industry-wide concern regarding uniformity of the granules, consistent product quality and operation, cleaning & maintenance in lesser time, We have been successfully able to address and solve these and many other areas of concern.

This is the result of the integrated & cohesive efforts of our R&D team, Manufacturing Engineers, Application Specialist to challenge the emerging need for customized and specific solutions in the process technology. This series meets the highest cGMP standards.

Chamunda Pharma Machinery Pvt. Ltd. is a pharmaceutical machine manufacturer company that provides high shear mixer granulators for the manufacturing of tablets and capsules. We specialize in providing such products to major pharma companies, research organizations, and universities throughout the world. Chamunda Pharma Machinery Pvt. Ltd. has established itself as one of the leading manufacturers of high shear mixer granulators with clients across more than 15 countries around the world.

Features
  • In compliance with cGMP guidelines
  • Modular Design
  • Mixing of substances uniformly and homogeneously
  • With special design Mixer & Chopper blades.
  • Electro-Pneumatic Operated Discharge
  • Effective sealing
  • Easy to clean machine
  • Fully Automatic Operation through Programmable
  • Logic Controller (optional)
  • Binder addition system (optional)
  • Inline co-mill for uniform granules. (optional)
  • Flameproof Construction (optional)
Technical Specifications
MODEL CPMRMG25 CPMRMG50 CPMRMG100 CPMRMG150 CPMRMG300 CPMRMG400   CPMRMG600 CPMRMG800 CPMRMG1000 CPMRMG1200
Gross Volume Ltr.* 25 50 100 150 300 400   600 800 1000 1200
Working Volume Ltr.* 20 40 80 120 240 320   480 640 800 960
Mixer Motor (HP) 3/5 5/7.5 7.5/10 10/15 22.5/30 HP 30/40   40/50 50/60 60175 75/100
Chopper Motor (HP) 1.5/2 2/3 2/3 3/5 3/5 HP 517.5   7.5/10 10/15 15/25 25/30
Compressed Air Pressure (bar) 6
Total Power (HP) 7 10.5 13 20 35 47.5   60 75 100 130
Electrical Supply** 415 V±10%, AC, 3 0, 50 Hz
