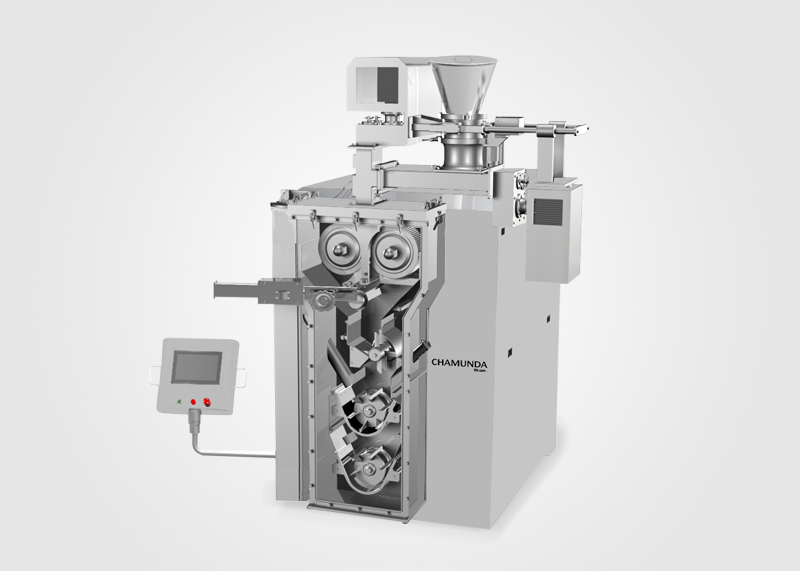

Roll Compactor Cantilever Model
Features
- In compliance with cGMP guidelines
- Contact parts are made of S.S. 316 except rollers
- All covers are designed to obtain dust-free operation
- Feed screw is steplessly driven through variable frequency drive.
- Hard chome plated & mirror finished compacting rolls made of tools steel
- The pre-compaction chamber guides the product to rolls without any slippage or leakage.
- Electrical interlocking beetween main roll drive and feed screw drive
- Water Jacketing arrangement (optional)
- Hydraulic Power Pack system (optional)
- ACVF Drive for rolls (optional)
- PLC system as per 21 CFR part 11 (optional)
Technical Specifications
| MODELS |
CPMRC 200/50 |
CPMRC 200/75 |
CPMRC 200/100 |
CPMRC 200/150 |
CPMRC 300/330 |
| Max. Output (kg/hr)* |
20 to 60 |
30 to 100 |
100 to 250 |
100 to 350 |
100 to 1000 |
| Roll Speed (RPM) |
6 to 25 |
6 to 25 |
6 to 22 |
6 to 22 |
6 to 25 |
| Feed Screw Speed |
10 to 60 RPM |
10 to 60 RPM |
16 to 50 RPM |
16 to 50 RPM |
10 to 90 RPM |
| Roll Drive Motor |
5 HP |
5 HP |
7.5 HP |
10 HP |
30 HP |
| Feed Screw Drive motor |
2 HP |
2 HP |
3 HP |
3 HP |
5 HP |
| Electrical Supply** |
7 HP,3 0,A.C. |
7 HP,3 0,A.C. |
10.5 HP, 3 0,A.C. |
13 HP,3 0,A.C. |
28 HP, 3 0, A.C. |
