CPEB4

CPEB4

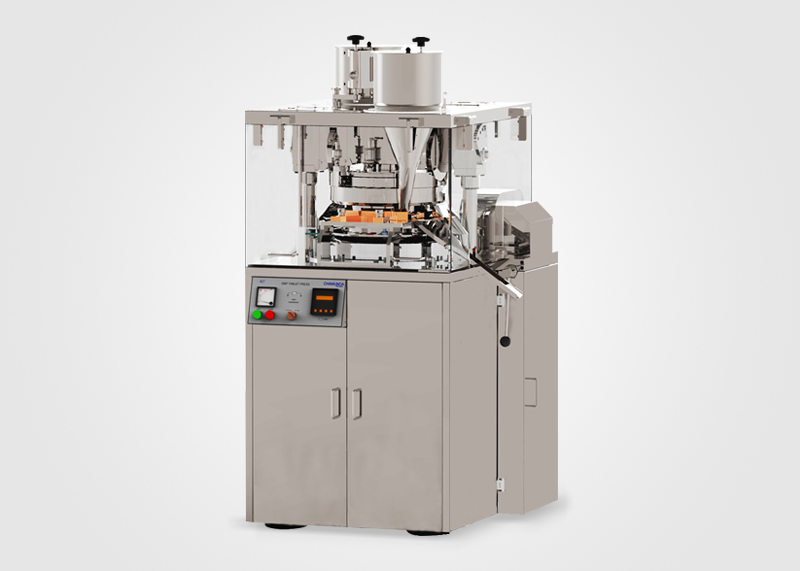

This sturdy GMP square model double rotary tablet press is designed for the production of medium batches with the features like high tonnage, rigid gunmetal feed frame, variable speed pulley drive, overload pressure release arrangement, etc.

Request A Quote
Features
  • Contact Parts in SS 316
  • Three Piece Turret with SS 316 Die Plate with Lower Punch Wiper Seal (Wiper seal only in D & B Tooling)
  • Two-Sided (Tunnel Type) Lifting Upper Track
  • Upper Punch Penetration
  • Upper Guard interlocking
  • Main Motor with ACVFD** and Electro-Magnetic Clutch**.
  • Manually Overload Pressure Release Arrangement.
  • Dust Nozzle with Clamp.
  • Lower Punch Lubrication for Punch Stem (Punch Body).
  • Auto Lubrication Arrangement for centralized lubrication**
  • Big Oil Cup 1 Nos. & Small Oil Cup- 2 Nos. for manual continuous lubrication
  • Anti-vibration mounts for vibration absorption.
  • Inching.
  • Anti-Reverse Protection.
  • Force Feeder Arrangement**
  • Two Layer (Bi-layer) Attachment  (For 27 & 35 STN Only)**
  • Powder level sensor**
  • PLC with HMI Touch Control System**
  • Provision for extra plug and socket - 2 nos. of single-phase and 3 nos. of three-phase for De-Duster and Dust Extractor machine connection.
  • Motor - 3 Phase / 415 V/ 50 Hz / Non Flame Proof
Technical Specifications
MODELS CPMD3B-27 CPMB3B-27 CPMB3B-35 CPMB3B-45
Tooling "D" "B" "B" "BB"
No of Stations 27 27 35 45
Max Output (Tablets/hr)* 136,080 136,080 176,400 226,800
Max. Pressure 10 Ton 6.5 Ton 6.5 Ton 6.5 Ton
Max. Tablet Dia 25 mm 16 mm 16 mm 11 mm
Max. Depth of Fill 20 mm 17 mm 17 mm 17 mm
Electricalsupply** 5HP, 3 ∅, A.C. 3HP, 3 ∅, A.C. 3HP, 3 ∅, A.C. 5HP, 3 ∅, A.C.
