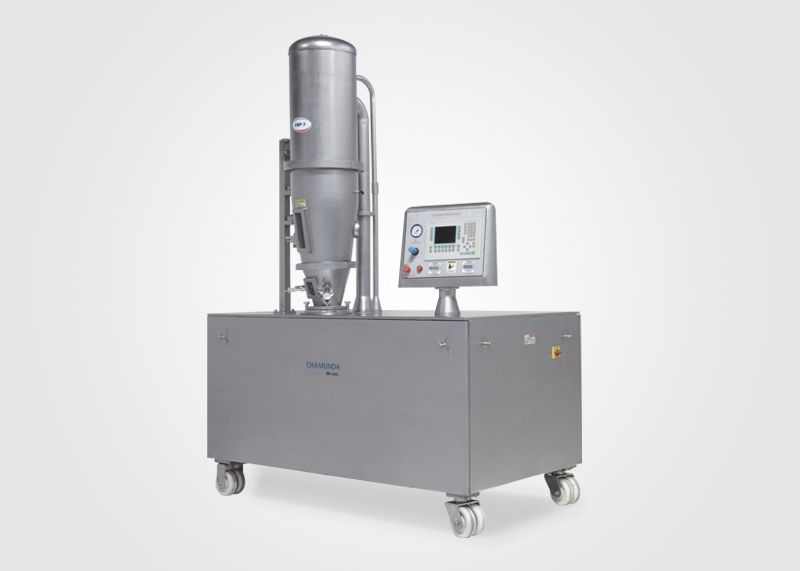

FB tech Ci (Lab Model) – Fluid Bed Processor

FB tech Ci (Lab Model) – Fluid Bed Processor

Chamunda Fluid Bed Processor, the machine is single-pot Technology for Mixing, Granulating, Drying and Blending operated through sophisticated PLC Control. Ensure a high degree of control of process parameters ensuring batch Batch reproducibility without compromising product quality.

Yield Approx. 100% with negligible handling losses due to the single pot concept GMP model. Contact part made up of S.S.316 with mirror polished surface inside and outside finish will be malt.

Request A Quote
Product Description

Processing by fluid bed method offers advantages like reduction in manpower, utilities, space and hence air-conditioning, less material handling, reduction in dust levels, reduction in the exposure of the product to the environment, and exposure of the operator to the product.

Features
  • cGMP Concept
  • Single Pot technology for mixing, granulating, drying, blending.
  • Yield nearly approaches 99% with negligible handling losses due to single pot.
  • Quick Dismantling of Dutch Sieve & Perforated Sheet at the Product container
  • Machine with Inbuilt Blower and AHU
  • Online Sampling Device
  • Fully Automatic Operation through Programmable Logic Controller
  • Accurate temperature control within ± 2 ° C
  • Flameproof Construction (Optional)
  • Bottom Spraying system (Optional)
Technical Specifications
MODEL Ci-3
Container Gross Volume Ur." 8
"Max.Batch Capacity (0.5 bd) kg* 1.2 to 3
Blower Motor HP** 2
Air Flow (CFM) 270
Steam Pressure (kg/cm2) 3.5
Steam Consumption (kg/hr) 22
Electric Heater Non FLP (KW) 9
Compressed Air Pressure (bar) 8
Drying Temp (C) 35-80
Electrical Supply** 2 HP, 3 ∅,AC.
