CPMD3

CPMD3

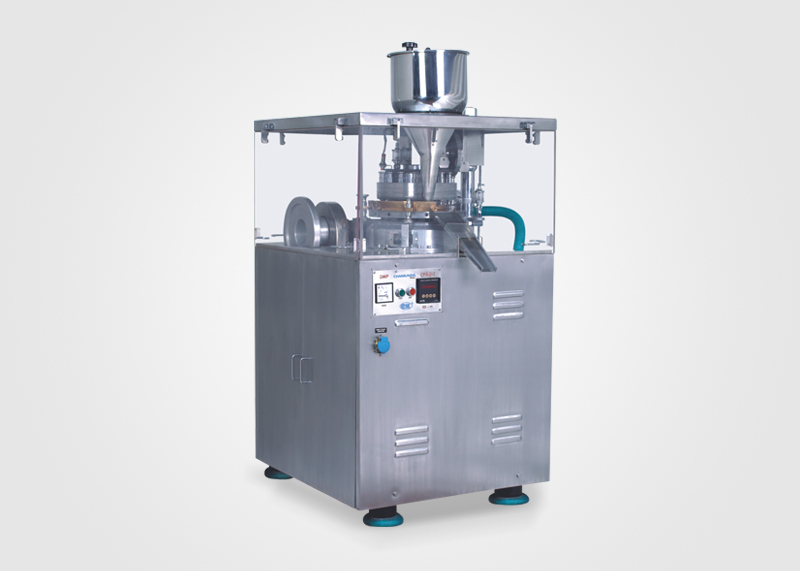

This GMP square model single rotary tablet press is an entry-level machine and is designed for the production of small batches. This proven machine is suitable for a variety of applications in pharmaceutical and other industries like food, chemical, naphthalene, confectionery, etc.

Request A Quote
Features

The suitable model can be selected based on the tooling and output requirement from the 16, 20 & 23 stations with the “D”, “D” & “B/D” tooling respectively. A 12 station model is also available with special tooling and tunnel type can track having max lab Dia-of 40 mm & max depth of fill of 30 mm.

  • Force Feeder
  • PLC system
Technical Specifications
MODEL CPM3SH-12 CPMD3-16 CPMD3-20 CPMD3-23
Tooling Special "D" "D" "D&B"
No. of Stations 12 16 20 23
Max.Output (Tab/hr)* 15,840 40,320 50,400 57,960
Max. Pressure (Ton) 12 10 10 10
Max.Tablet Dia (mm) 40 25 25 16
Max. Depth of Fill (mm) 30 20 20 17
Electrical Supply** 3HP, 3 ∅, A.C. 2HP, 3 ∅, A.C. 2HP, 3 ∅, A.C. 2HP, 3 ∅, A.C.
