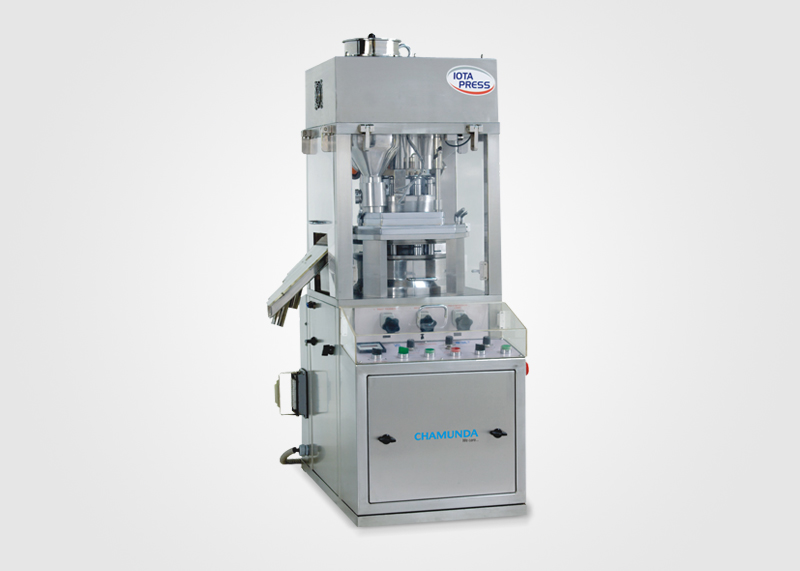

IOTA Press GMP Model

IOTA Press GMP Model

The Single-sided rotary tableting machine has been designed to use for tablet making of products of Pharmaceuticals and any other similar process industries.

Request A Quote
Features
  • In compliance with cGMP guidelines
  • Output up to 19,200 Tablets/hour.
  • Combination Tooling ‘B’ & ‘D’ available to suit the R & D requirements
  • Force Feeding System
  • AC variable frequency drive for Main Motor and Force Feeder Motor
  • Main compression of 40 kN/4 Ton
  • Pre-compression of 10 kN/1Ton
  • Adjustable upper punch penetration
  • Upper guard interlocking
  • Lower cam for two different filling depth
  • Available in the dial-less model also
  • Monitoring of individual Punch Force Data with graphical representation (optional)
  • Audit trails and summary reports (optional)
  • Batch data reporting and printing (optional)
Technical Specifications
MODEL CPMIOTA "B" & "D" TOOLING CPMIOTA "D" TOOLING CPMIOTA "B" TOOLIN G
"No. of stations 4 + 4 = 8 8 8
Tooling" 4B & 4D "D" "B"
Max.Operating Load 4 Ton 4 Ton 4 Ton
Max. Pre-comp. Load 1 Ton 1 Ton 1Ton
Max.Output (Tab/hr)* 9,600 19,200 19,200
Max.Tablet Dia (mm) 23 for "D" Tooling16 for "B" Tooling 23 16
Depth of fill (mm) 17 17 17
Upper punch penetration (mm) 3 to 6 3 to 6 3 to 6
Main electric motor(Driven through ACVFD) 2HP 2HP 2HP
Feeder electric motor(Driven through ACVFD) 0.25HP 0.25HP 0.25HP
Electricalsupply** 2.5 HP,3 ∅,A.C. 2.5 HP, 3 ∅,A.C. 2.5 HP,3 ∅,A.C.
