R D Multipurpose

R D Multipurpose

MULTI-PURPOSE EQUIPMENTS has carved its niche as versatile all-purpose equipments for research and development in pharmaceuticals, chemical, cosmetic and food industries. Equipment has broad-based functions providing an edge for companies specializing in R & D. The purpose is to enable SCALE UP and invent/innovate a new drug by taking trials with small batch (minimum. 1 litres and maximum. 5 litres in volume) in R&D labs, Pharmaceutical colleges & Institutions, where limited physical space, sample size, price of trial, time and Ergonomic convenience are of utmost importance.

Request A Quote

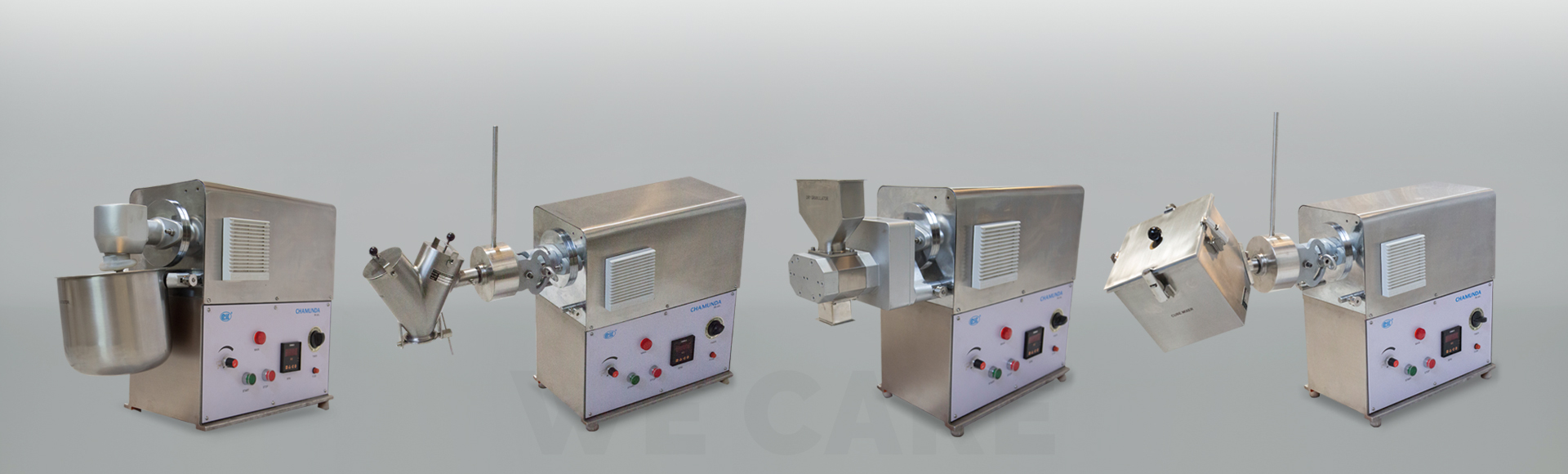

An array of attachments can be mounted on the main drive by a means of flange coupling system for operation like:-
  • Dosing
  • Granulating
  • Homogenizing
  • Kneading
  • Pelletizing

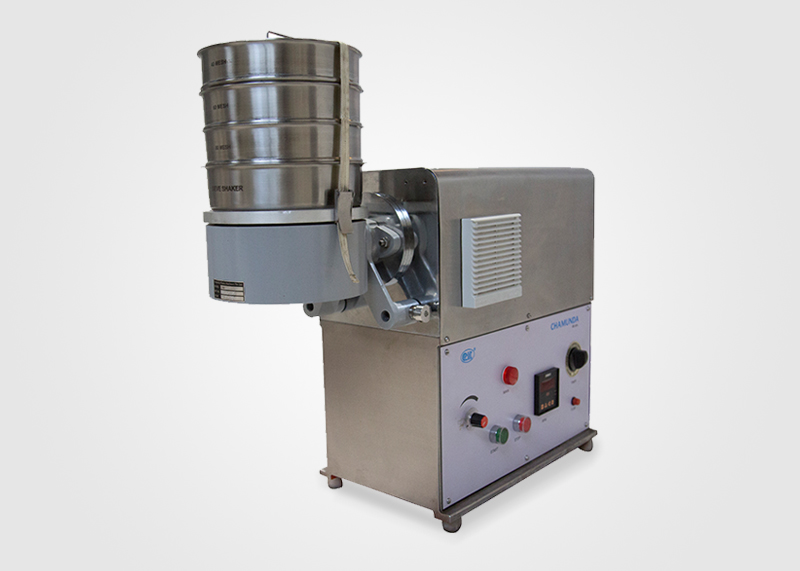

  • Sieving
  • Shacking
  • Stirring

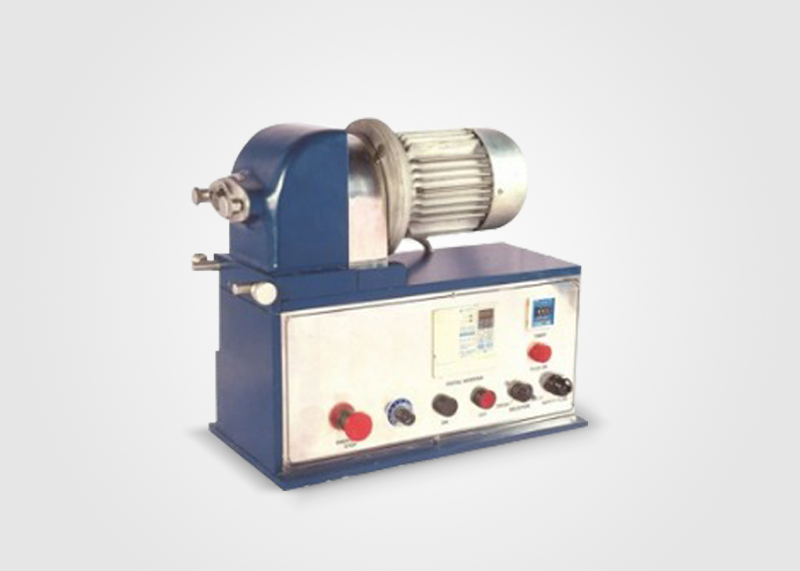

Horizontal Drive Type

The Horizontal main drive, CPMHD GMP Model 220V AC, which is completely maintenance free, has 1 HP 0.75 KW, three phase AC motor. The motor rpm can be controlled with AC variable drive to adjust the speed steplessly from 0 to 400 rpm. The process time is auto controlled through timer relays. The various attachments can be quickly attached & interchanged to the main drive unit. A separate power supply socket is also provided for the attachments requiring heating.

I/P power : 220 V, single phase.
Electric Motor : 1 HP AC, 220 V, 50Hz, 3 Phase, Flange Mounted, 2810/3400rpm
AC Vari-Drive : 0.75 KW / 1HP, 220 V AC, 1 Phase (input), 3 Phase(output), 50Hz
Dimension : 535 x 285 x 535 mm
Net Weight : 69.50 Kg

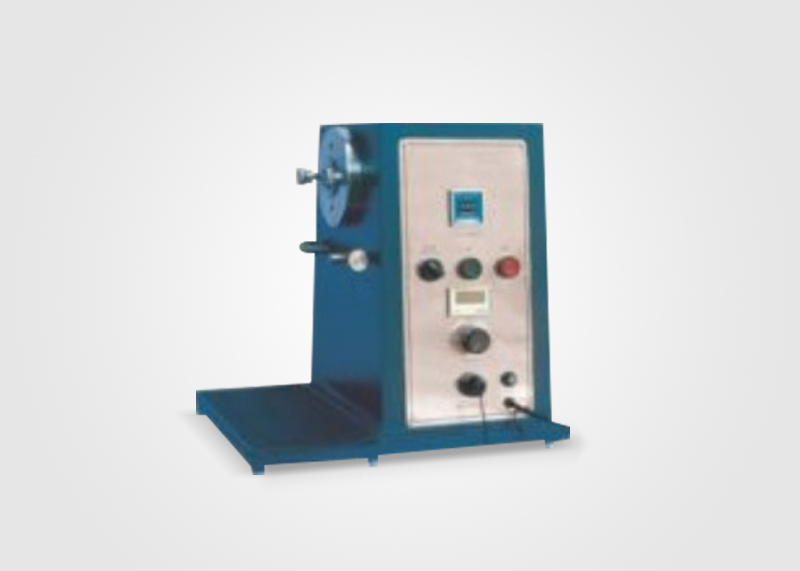

Vertical Drive Type

The vertical drive unit, completely maintenance free, is equipped with 1 HP, 0.75 KW, 230/415 V motor. The motor is controlled with DC thyristor drive for speed adjustable from 10 to 400 rpm in case DC, displayed on electronic rpm meter. The process time is auto controlled through timer relays. The various attachments can be quickly attached & interchanged to the main drive unit. A separate power supply socket is also provided for the attachments requiring heating.

I/P power : 230 V AC, 1 phase
Electric Motor : 1 HP DC, 230/415V, Flange Mounted, 2810/3460 rpm
Dimension : 470 x 435 x 470 mm
Net Weight : 43.50 Kg
Gross weight : 75 Kg
