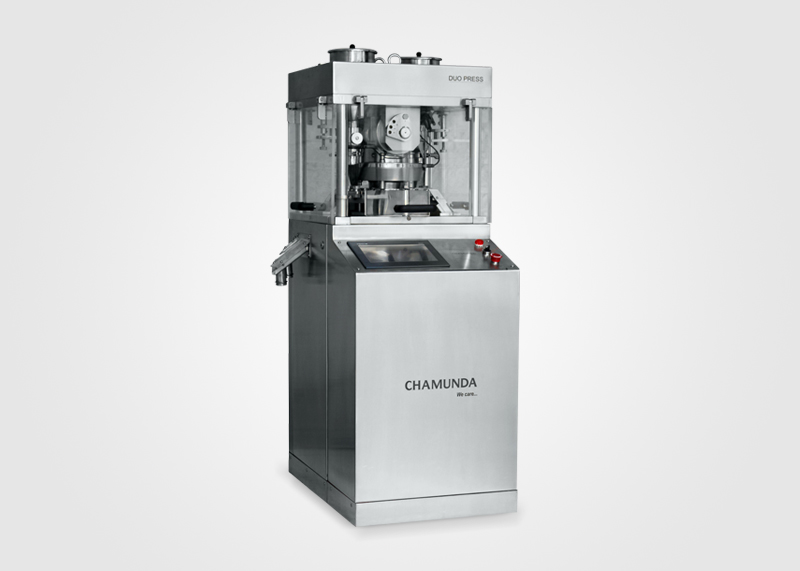

Duo Press – Bilayer Tablet Press

Chamunda DUO PRESS (Double Rotary) is developed to meet the R & D or production sector in the Tableting zone of the pharmaceutical industry. The aesthetic look and innovative compact design built on the principles of the latest tablet technology further supports the consistency of the machine. This machine comes with variant tooling such as “D”, “B”, “D + B”, and “D + B + BB” to meet the customized requirements.

Request A Quote
  • Contact parts in SS 316
  • Central Drive System
  • Three piece turret with SS 316 Die Plate and lower punch wiper seal
  • Main motor with ACVFD
  • Adjustable Upper punch penetration
  • Tablet compression zone with transparent enclosures and safety interlocking system.
  • Gravity feeding system
  • Inside controls for weight and tablet thickness adjustment
  • Manually Overload Pressure Release Arrangement
  • Dust Nozzle with Clamp
  • Emergency Stop.
  • Anti-vibration mount for vibration absorption
  • Inching
  • Anti-Reverse Protection
  • Power supply 3 phase / 415V AC / 50 Hz
  • Lower Cabinet including drive system enclosed with S.S.304 guards.
Technical Specifications
No. Of Station 5 + 5 = 10
Tooling 5D I 58 TOOLING
1st Layer Compression Force (Tons) 50 kN/ 5 Tons
2nd Layer Compression Force (Tons) 50 kN/ 5 Tons
Turret Speed (rpm) - Thru ACVFD 10 to 30
Output Tablets/ hr* 9000
Max. Tablets Dia. (mm) 23 For "D" Tooling 16 For "B" Tooling
Max. Depth Of Fill 1st Layer (mm) 10
Max. Depth Of Fill 2nd Layer (mm) 17
Feeding system Gravity Feed
Hopper Capacity 5 liters
Upper Punch Penetration 1st Layer (mm) 3 to 6 mm
Upper Punch Penetration 2nd Layer (mm) 3 to 6 mm
1st Layer Sampling By pneumatic
Main Electric Motor 2 HP,1440 RPM,3 Phase,AC
Electric Supply 1.5 kW,415 V,AC,50 Hz,3 Ph.
Overall Dimensions (mm) L x W x H (Approx.) 700 x 500 x 1650
Charging Height (mm) 1650
Discharge Height (mm) 950
